200 bar direct acting high pressure solenoid control valve for air compressor
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLS31 10-1.0, 15-1.5 1-1/8" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V
20-2.0, 25-2.5 2-1/4" N- NPT S-SS304/316 T-PEEK 3-AC110V 4.DC12V
30-3.0, 40-4.0 3-3/8" 5-AC24V
50-5.0, 60-6.0
NLS31, direct acting high pressure solenoid valve 0-200 bar
Example : NLS31 10 1 GBT S91B1: NLS31 type, normal closed 1.0mm orifice, G1/8", brass body, PET seals.
2.Solenoid Valve Specification
Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 1.0, 1.6(mm) PET seal:-40℃~150℃(-40℉~302℉)
Pressure: NLS31:0.00MPA~1.6MPA (0.0PSI~232PSI) Port size: 1/8”, 1/4”, 3/8”
Port thread: NPT, G Thread
Voltage: DC:12VDC, 24VDC, Coils: GE11B,5.5VA(AC),3W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S11B,22VA(AC),15W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. direct acting strcuture
Seal- PEEK PTFE 2. long lifespan seals for high temperature
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F 4. Low consumption coil(3W DC)
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3.Detailed Information

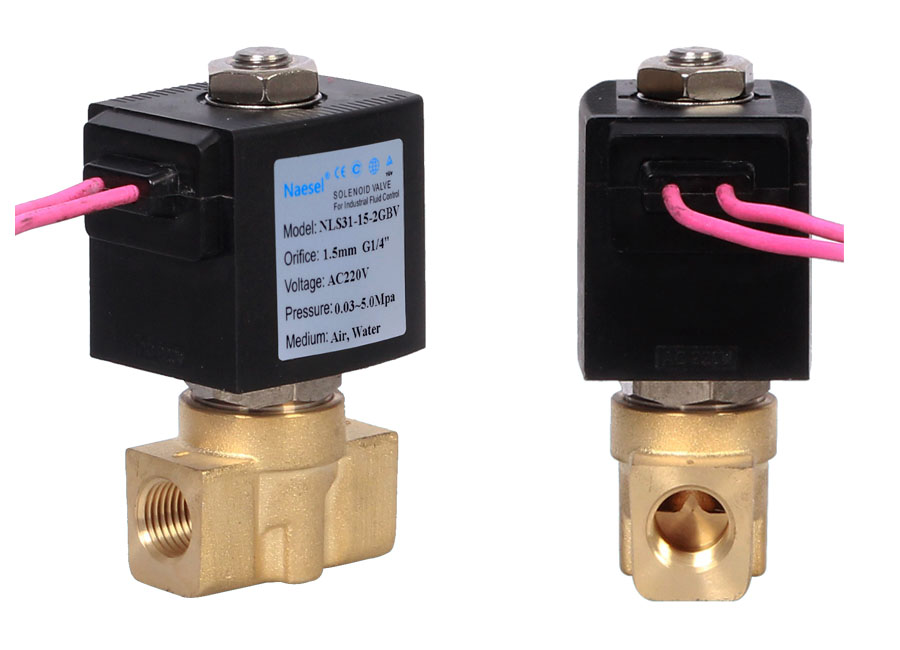

NLS31 normally closed high pressure solenoid valve with GE11B energy saving coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(15W) |
| NLS31101XXX | 1/8"/1/4" | 1.0 | 0.05 | 0.01Mpa | 10.0Mpa | 10.0Mpa | Brass SS304 SS316 | PET Viton PU | S91B |
| NLS31161XXX | 1/8"/1/4" | 1.6 | 0.08 | 0.01Mpa | 20.0Mpa | 20.0Mpa | GE11B |

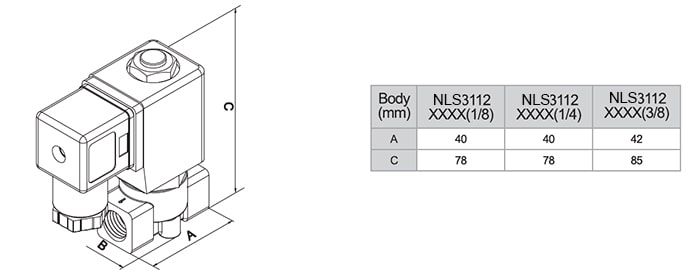

4.Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.

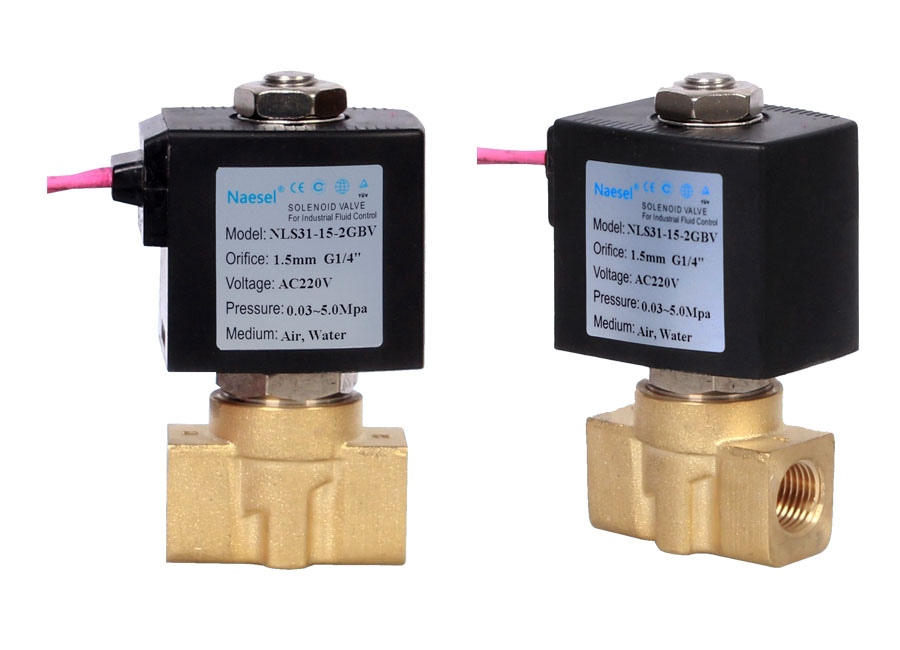

6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
