mini latching solenoid valve for public toilet public bath or public toilet
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLO41 1.6, 2.5, 3.0 1/8" G- G B-Brass N-NBR L21B 1-DC24V
9.0 1/4" N- NPT S-SS304/316 V-FKM 2-DC12V
1/2" P-POM E-EPDM 3-DC6V
NLO11 mini latching solenoid valve for public toilet public bath or public toilet
Example : NLO41 25 1 NPV L11B1: NLO41 type, normal closed 2.5mm orifice, G1/8" port, POM body, Viton seals.
2.Solenoid Valve Specification
Medium: water etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.6, 2.5, 3.0, 9.0(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLO41:0.0MPA~1.0MPA (0.0PSI~145PSI) Port size: 1/8", 1/4" , 1/2”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, 6V Coils: L21B,2W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. latching coil, no need to keep electrico
Seal- VITION, NBR, EPDM, PTFE 2. 0 Pressure started for direct acting type
Armature- SS304 3. Low consumption
Plunger- SS430F 4. suitbale for public toilet and bath
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3.Detailed Information
NLO41 normal closed mini latching solenoid valve
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| DC(2W) |
| NLO41161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.0Mpa | Brass SS304 SS316 POM | NBR EPDM FKM | L21B |
| NLO41251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.0Mpa | L21B |
| NLO41301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |
| NLO41252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 1.0Mpa | L21B |
| NLO41302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |
| NLO41904XXX | 1/2" | 9.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |

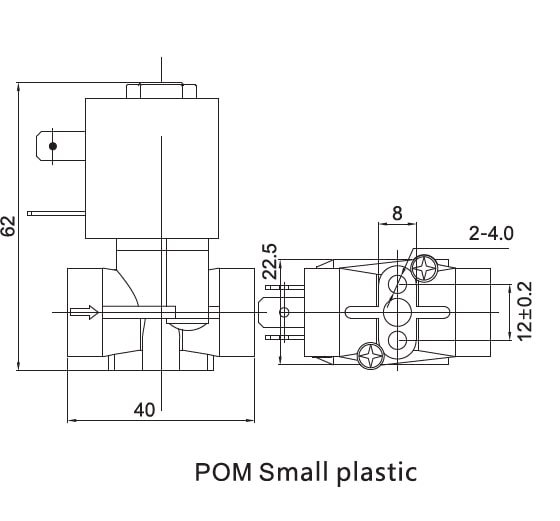

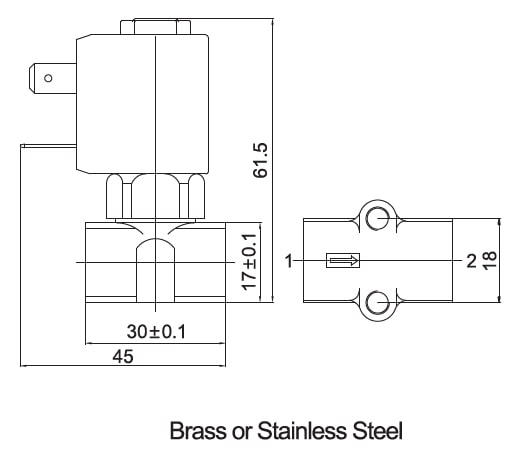

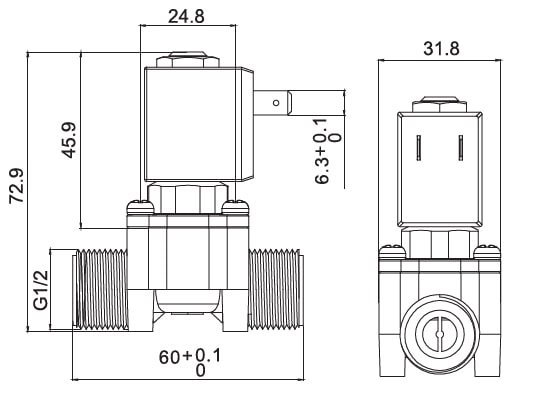

4.Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.

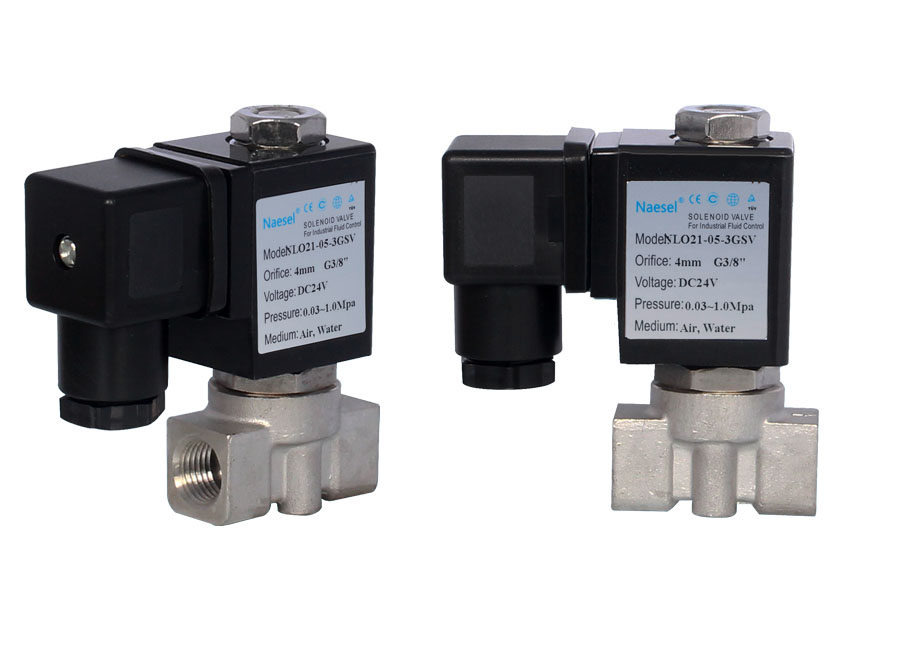

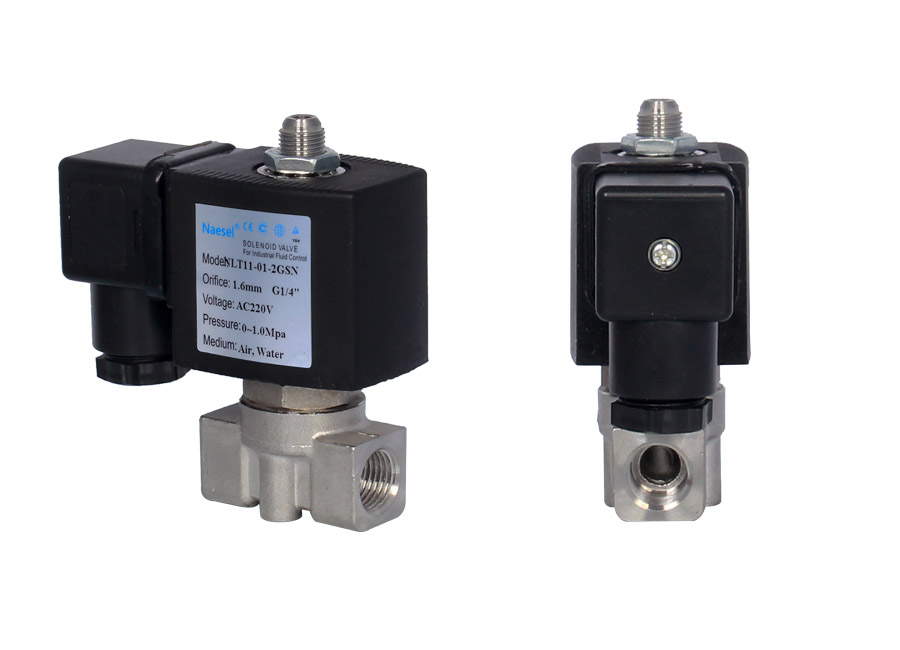

6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
