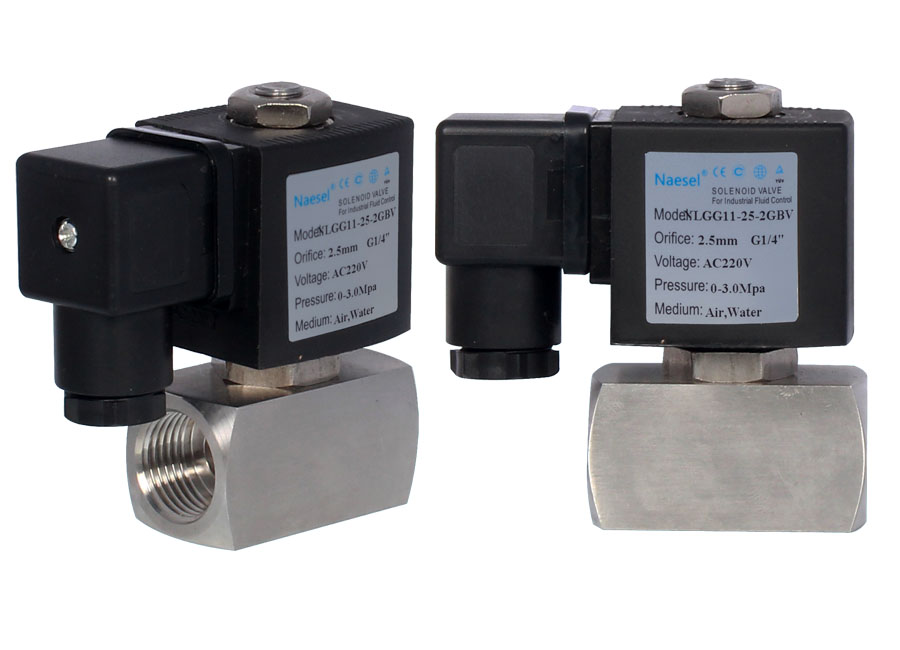

2 / 3 way normal close solenoid control valve for low or high temperature use
2 / 3 way normal close solenoid control valve for low or high temperature use
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLTG11 10-1.0 40-4.0 1-1/8" G- G B-Brass N-NBR SA81B 1-AC220V 2-DC24V
25-2.5 45-4.5 2-1/4" N- NPT S-SS316/304 E-EPDM 3-AC110V 4-DC12V
30-3.0 50-5.0 V-FRM/Viton 5-AC24V 6-DC36V
35-3.5 60-6.0
NLTG11 normally closed 2/3 way solenoid valve for low temperature under 80 degree
Example : NLTG11 10 1 GBN S91B1: NLTG11 Series, normal closed, 1.0mm orifice, G1/8", brass body, special seals, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: Special seal:-80℃~200℃(-112℉~392℉)
Orifice: 1.0, 1.6, 2.0, 2.5, 3.0,3.5,4.0,
5.0, 6.0, 8.0, 10.0(mm)
Pressure: NLTG31:0.0MPA~4.0MPA (0.0PSI~460PSI) Port size: 1/8”, 1/4”, 3/8”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, 36V, Coils: SA81B, 22VA(AC),13W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE 3. Special seal for low or high temp.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(13W) |
| NLTG11161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 4.0Mpa | 3.5Mpa | Brass SS304 SS316 | Special Material | SA81B |
| NLTG11251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B |
| NLTG11301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B |
| NLTG11252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 2.5Mpa | 2.0Mpa | SA81B |
| NLTG11302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 2.0Mpa | 1.8Mpa | SA81B |
| NLTG11352XXX | 1/4" | 3.5 | 0.34 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA81B |
| NLTG11402XXX | 1/4" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B |
| NLTG11452XXX | 1/4" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLTG11403XXX | 3/8" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA81B |
| NLTG11453XXX | 3/8" | 4.5 | 0.61 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLTG11503XXX | 3/8" | 5.0 | 0.71 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
| NLTG11603XXX | 3/8" | 6.0 | 0.8 | 0.0Mpa | 0.5Mpa | 0.5Mpa | SA81B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
